INPUT CHARACTERISTICS:
Input Connector Type: ATX 2.03, ATX 12V(P4), EPS 12V, WTX, AMDGES
Input Connection: Make sure plug power source according to the label instruction.
Input Current: 8.5A for 90VDC, 6A for 125VDC and 5.5A for 140VDC
Inrush Current: 65A max. for 125VDC

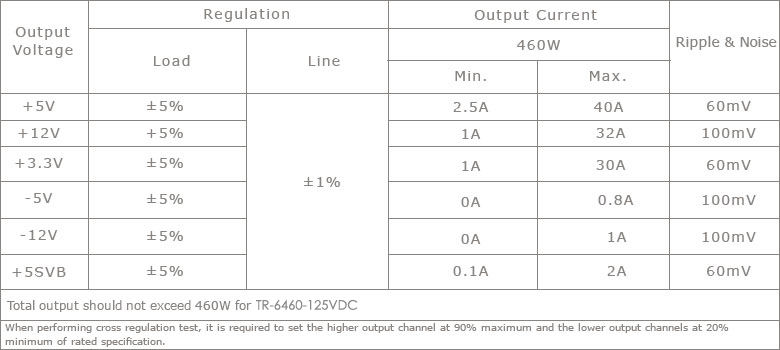

OUTPUT CHARACTERISTICS:
OVERALL PERFORMANCE:
Efficiency: 71% typical @ 125VAC full load
Power Good Signal: On delay 100ms~500ms, off delay 1ms
Short Circuit Protection (SCP): Shutdown and latch
Over Load Protection (OPP): 110~150% max.
Over Voltage Protection (OVP): +5V: 5.7V~6.5V, +3.3V: 3.9V~4.3V, +12V: 13.6V~15V
Over Current Protection (OCP): +5V: 44A~60A, +3.3V: 33A~45A, 12V: 35.2A~48A
ENVIRONMENTAL SPECIFICATIONS:
Cooling: One 80mm DC fan with ball bearing
Operating Temperature: 0°C~+50°C, +60°C at half power
Operating Humidity: 20%~95% RH (non-condensing)
Storage Temperature: -10°C~+70°C
Storage Humidity: 10%~90% RH (non-condensing)
RELIABILITY:
MTBF: >75,000 hours @ max. load & 25°C ambient
Safety Standards: Meet UL1950, CSA 22.2NO/950, TUV IEC 950
EMI Compatibility (EMC): FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)
Dielectric Isolation: Input to output: 1500VAC for 1 second, Input to frame ground 1500VAC for 1 second
STANDARD OUTPUT CABLE LENGTH:
530mm or 20.87 inches
ENCLOSURE DIMENSIONS:
140(L) x 150(W) x 86(H) mm
5.51(L) x 5.9(W) x 3.39(H) inches
NET WEIGHT:
2~2.3KG
4.4~5.07LB
