Rack Mount Computers

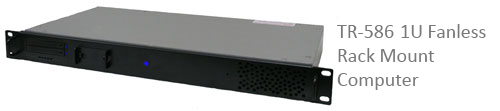

TR-586 computer features a solid state fanless design. It has no processor and chassis fans. It is based on a highly efficient Intel Quad Bay Trail 2.4GHz  processor. Industrial high speed 2.5" MLC or SLC SATA flash drives can be used and/or an optional RAID1 configuration with 2.5" SATA flash drives.

TR-586 comes with 2 x Gigabit LAN ports, 4 x USB 2.0 ports, 2 x USB 3.0 ports and 2 x Serial ports (1 x RS232 and 1 x RS232/422/485).

This computer can operate from 100 ~ 240VAC. Other DC inputs such as 125 and 250VDC are optional.

The TR-586 operating temperature is 0°C ~ 50°C, 60°C for 2 hours with 100% system load.

Base price of the TR-586 is US $950 for a system with 2.4GHz Intel Quad Bay Trail processor, 8GB DDR3 memory and 64GB high speed, high temperature flash disk drive. Warranty is 5 years.

Download TR-586 Specifications

Download TR-586 Mechanical Drawings
