Only they highest quality, field proven parts are used to manufacture this server class computer. Average MTBF is estimated up to 100,000 hours. Design is based on Intel 9th generation
6/8-core Xeon E-series processors. It is based on the Intel C246 chipset. Up to 32GB
DDR4 ECC parity memory.

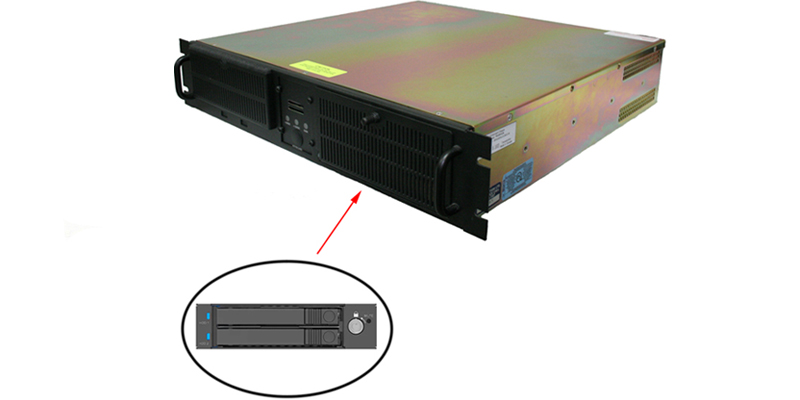

The TR-XEON includes optional dual hot swap 500W power supply and optional dual
hot swap RAID1 disk subsystem with 2.5″ SSD or hard drives.
Backplane expansion slots include 1 x PCIe x16, 1 x PCIe x4 and 3 PCI slots.
The TR-XEON includes optional dual hot swap 500W power supply and optional dual
hot swap RAID1 disk subsystem with 2.5″ SSD or hard drives.
Other options include additional Intel based Giga LAN ports with PoE and IRIG A/B timecard.
Standard version comes with Cervoz industrial 128GB SSD with Power Guard feature that prevents bad blocks on the drive during sudden loss of power.
Power options include 24VDC, 48VDC, 125VDC, 250VDC and Universal AC 50/60 Hz.
Fully compatible with Windows 10 and Windows 11 operating systems.
TR-XEON computer is manufactured in our Mississauga plant in Canada to the ISO 9001:2015 QA standard. US nuclear QA procedures can be implemented at higher prices and are available on request.
TR-XEON computer comes with 3 years warranty and technical support for life. The warranty is supported long term by inventory of parts.
Expected longevity of suppliy is 2032.
Download TR-XEON Specifications
