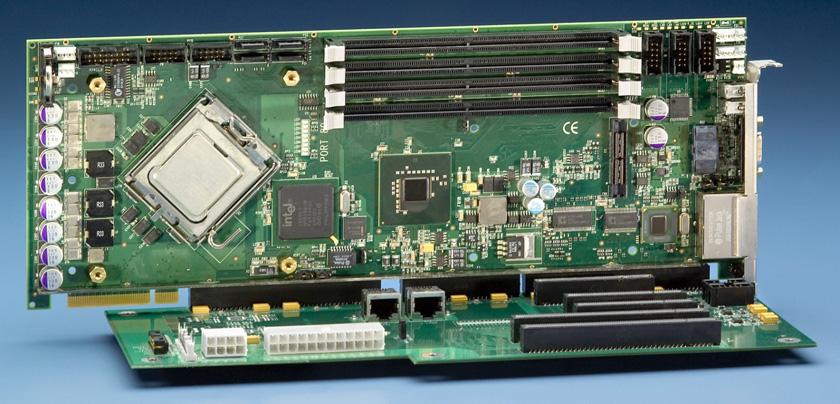

The TR-TQ9 has been designed to operate effectively in today's complex system applications. The TR-TQ9 features the latest dual- and quad-core Intel Core 2 Processor and Intel Q35 Express Chipset.

Along with advanced performance delivered by the multi-core processors over the 1333MHz front side bus, the TR-TQ9 features dual-channel DDR2-800 system memory interface. The four DIMM sockets on the SBC support up to 8GB memory using PC2-6400 DIMM's. It supports option cards from x16 PCI Express to legacy 32-bit/33MHz PCI cards.

Advanced I/O interface capabilities include an audio codec interface, two eSATA connections to the backplane and a dozen USB interfaces. Connecting the TR-TQ9 into a PICMG 1.3 graphics-class backplane enhances system design flexibility. The TR-TQ9 is the ideal choice in applications that demand multi-processing functionality.
