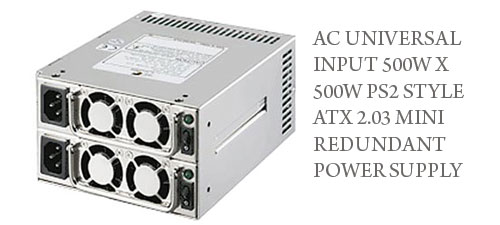

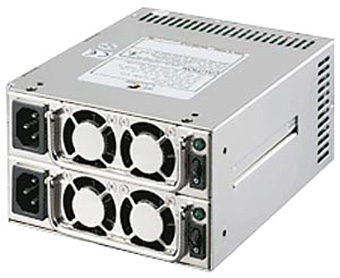

AC UNIVERSAL INPUT 500W X 500W PS2 STYLE ATX 2.03 MINI REDUNDANT POWER SUPPLY

AC UNIVERSAL INPUT 500W X 500W PS2 STYLE ATX 2.03 MINI REDUNDANT POWER SUPPLY
AC UNIVERSAL INPUT 500W X 500W PS2 STYLE ATX 2.03 MINI REDUNDANT POWER SUPPLY

INPUT CHARACTERISTICS:

Input Connector Type: ATX 2.03, ATX 12V(P4), EPS 12V, WTX, AMDGES

Input Connection: Make sure plug power source according to the label instruction.

Input Current: 9.0A for 115VAC, 4.5A for 230VAC per module

Inrush Current: 65A max. for 115VAC, 125A max. for 230VAC per module

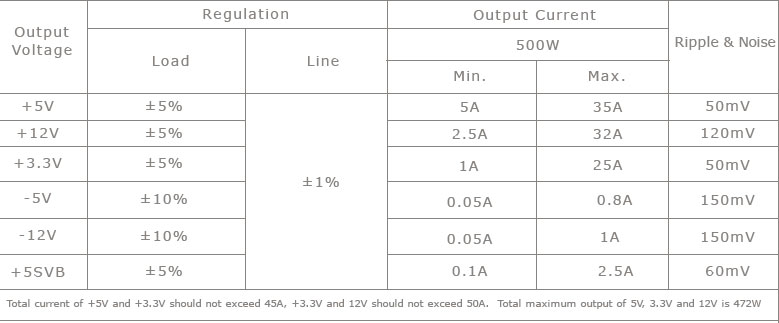

OUTPUT CHARACTERISTICS:

AC UNIVERSAL INPUT 500W X 500W PS2 STYLE ATX 2.03 MINI REDUNDANT POWER SUPPLY

OVERALL PERFORMANCE:

Efficiency: 63% typical @ 115VAC full load

Power Good Signal: On delay 100ms~500ms, off delay 1ms

Short Circuit Protection (SCP): Shutdown and latch

Over Load Protection (OLP): 110~160% max

Over Voltage Protection (OVP): +5V: 5.7V~6.6V, +3.3V: 3.9V~4.3V, +12V: 13.0V~14.6V

Over Current Protection (OCP): +5V, +12V, +3.3V 130% 20% @ full load -5V, -12V short circuit

Alarm Method: LED, Buzzer, TTL signal

Hot-Swappable & Hot-Pluggable Capability

Balance Load Sharing Design



ENVIRONMENTAL SPECIFICATIONS:

Cooling: Two 40mm DC fans with ball bearings, AC inlet in each module

Operating Temperature: 0C~+60C

Operating Humidity: 20%~95% RH (non-condensing)

Storage Temperature: -10C~+70C

Storage Humidity: 10%~90% RH (non-condensing)



RELIABILITY:

MTBF: >75,000 hours @ max. load & 25C ambient

Safety Standards: Meet UL1950, CSA 22.2NO/950, TUV IEC 950

EMI Compatibility (EMC): FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)

Dielectric Isolation: Input to output: 1500VAC for 1 minute, Input to frame ground 1500VAC for 1 minute





STANDARD OUTPUT CABLE LENGTH:

530mm or 20.87 inches



ENCLOSURE DIMENSIONS:

200(L) x 150(W) x 86(H) mm

7.87(L) x 5.91(W) x 3.39(H) inches



NET WEIGHT:

4~4.6KG

8.8~10.14LB
