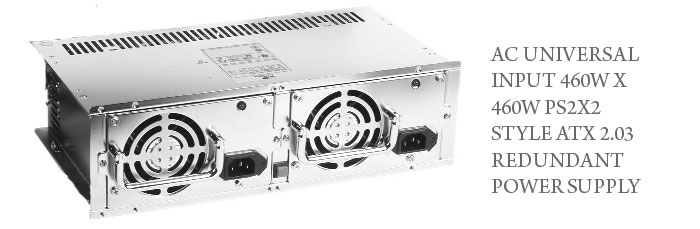

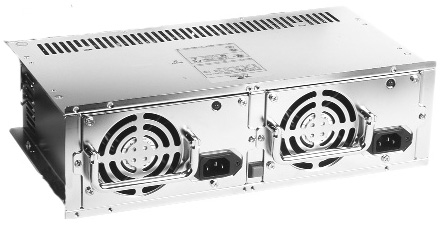

AC UNIVERSAL INPUT 460W X 460W PS2X2 STYLE ATX 2.03 REDUNDANT POWER SUPPLY

AC UNIVERSAL INPUT 460W X 460W PS2X2 STYLE ATX 2.03 REDUNDANT POWER SUPPLY
AC UNIVERSAL INPUT 460W X 460W PS2X2 STYLE ATX 2.03 REDUNDANT POWER SUPPLY

INPUT CHARACTERISTICS:

Input Connector Type: ATX 2.03, ATX 12V(P4), EPS 12V, WTX, AMDGES

Input Connection: Make sure plug power source according to the label instruction.

Input Current: 8.0A for 115VAC, 4.0A for 230VAC per module

Inrush Current: 65A max. for 115VAC, 125A max. for 230VAC per module

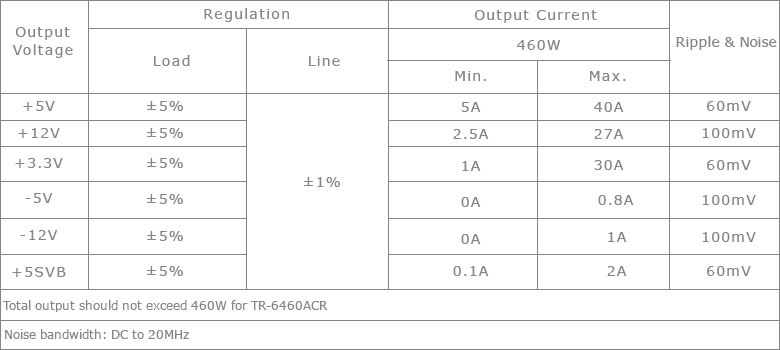

OUTPUT CHARACTERISTICS:

AC UNIVERSAL INPUT 460W X 460W PS2X2 STYLE ATX 2.03 REDUNDANT POWER SUPPLY

OVERALL PERFORMANCE:

Efficiency: 68% typical @ 115VAC full load

Power Good Signal: On delay 100ms~500ms, off delay 1ms

Short Circuit Protection (SCP): +5V, -5V, +12V, -12V, +3.3V

Over Power Protection (OPP): Peak power protected to 130%20% of continuous rated power (shutdown and latch off)

Over Voltage Protection (OVP): +5V: 5.7V~6.5V, +3.3V: 3.9V~4.3V, +12V: 13.6V~15V



ENVIRONMENTAL SPECIFICATIONS:

Cooling: Two 80mm DC fans with ball bearings

Operating Temperature: 0C~+50C, +60C at half power

Operating Humidity: 20%~95% RH (non-condensing)

Storage Temperature: -10C~+70C

Storage Humidity: 10%~90% RH (non-condensing)



RELIABILITY:

MTBF: >75,000 hours @ max. load & 25C ambient

Safety Standards: Meet UL1950, CSA 22.2NO/950, TUV IEC 950

EMI Compatibility (EMC): FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)

Dielectric Isolation: Input to output: 3000VAC for 1 minute, Input to frame ground 1500VAC for 1 minute





STANDARD OUTPUT CABLE LENGTH:

530mm or 20.87 inches



ENCLOSURE DIMENSIONS:

194.2(L) x 354(W) x 106(H) mm

7.65(L) x 13.94(W) x 4.17(H) inches



NET WEIGHT:

4~4.6KG

8.8~10.14LB
