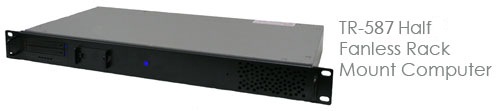

TR-587 Half Fanless Rack Mount Computer

TR-587 Half Fanless Rack Mount Computer

Reliable Control - Network Computer

TR-587 computer features a solid state half fanless design. It has no processor fan. The high quality, slowed-down, redundant ball bearing fans, are used to remove heat from the enclosure. It is based on a highly efficient Intel Dual ATOM processor. High speed flash disk drive can be used and/or an optional 2.5" hard drive. Two 1000Mbps Gigabit LAN ports are included for flexibility of network and control connections.

This computer can operate from 100 ~ 240VAC. Other DC inputs such as 125 and 250VDC are optional.

The TR-587 operating temperature is 0C ~ 60C. This is with 100% system load.

Base price of the TR-587 is US $1350 for a system with 1.8GHz Intel Dual ATOM processor, 4GB DDR3 memory and 64GB high speed, high temperature flash disk drive. Warranty is 3 years.

Download TR-587 Specifications

Download TR-587 Mechanical Drawings


  • Server-Class SATA 3.5" 1TB hard drive
  • High speed 64GB MLC flash SATA drive
  • RAID1 disk system with 2 x 2.5" 500GB SATA hard drives
  • Universal AC 90-250VAC power supply
  • 125VDC (90 to 150V) power supply
  • 250VDC (200 to 275V) power supply
  • 400 Hz AC power option
  • TR-MACRIUM backup kit
