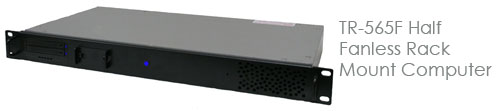

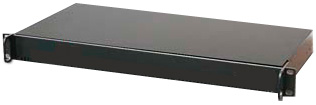

TR-565F Half Fanless Rack Mount Computer

TR-565F Half Fanless Rack Mount Computer

Reliable Control - Network Computer

TR-565F computer features a solid state half fanless design. It has no processor fan. The high quality, slowed-down, redundant ball bearing fans, are used to remove heat from the enclosure. It is based on a highly efficient Intel ATOM processor. High speed flash disk drive can be used and/or an optional 2.5" hard drive. Two 1000Mbps Gigabit LAN ports are included for flexibility of network and control connections.

This computer can operate from 100 ~ 240VAC. Other DC inputs such as 125 and 250VDC are optional.

The TR-565F operating temperature is 0C ~ 60C. This is with 100% system load.

Base price of the TR-565F is US $985 for a system with 1.6GHz Intel ATOM processor, 2GB high temperature memory and 64GB high speed, high temperature flash disk drive. Warranty is 3 years.

Download TR-565F Specifications

Similar Products

TR-565FB Half Fanless Rack Mount Computer With 1.6GHz Intel ATOM Processor and Internal UPS with SLA Battery

TR-565FR Half Fanless Rack Mount Computer with 1.6GHz Intel ATOM Processor with Dual Flash Drives in RAID1 Configuration
