 Transduction.com | TR-LCD1500-ITX-C2D/C2Q Rack or Panel Mount Industrial Computer With 15" TFT LCD Touch Screen | The computer includes embedded Intel Core 2 Duo or Core 2 Quad processor, up to 4GB DDR2 RAM memory and 2.5" SATA solid state drive or optional 2.5" hard drive.

This computer is no longer supplied.  Contact Transduction for long term service support.  Replacement model is TR-LCD1500-ITX-i5/i7.

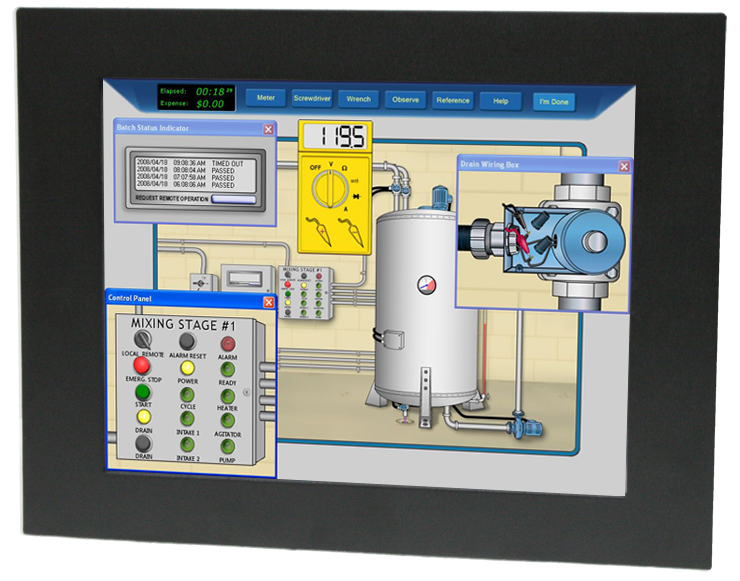

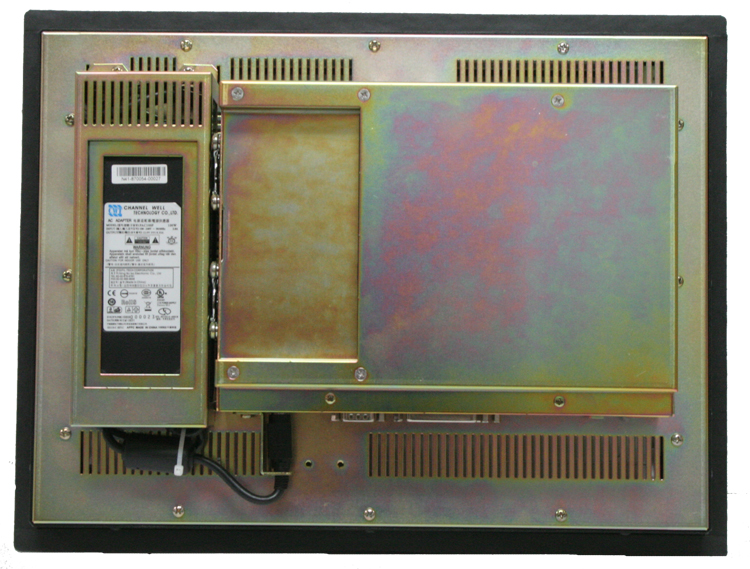

TR-LCD1500-ITX-C2D/C2Q Rack or Panel Mount Industrial Computer With 15" TFT LCD Touch Screen

Click on photos for expanded images

Email

TR-LCD1500-ITX-C2D/C2Q SpecificationsTR-LCD1500-ITX-C2D/C2Q Specifications

Download TR-LCD1500-ITX-C2D/C2Q Drivers

TR-LCD1500-ITX-C2D/C2Q is a reliable panel/rack industrial computer powered by Intel Core 2 Duo or Core 2 Quad processor.  It has a large 15" LCD screen with resolution of 1024 x 768 and matching resistive or capacitive touch screen.  The computer includes embedded Intel Core 2 Duo or Core 2 Quad processor, up to 4GB DDR2 RAM memory and 2.5" SATA solid state drive or optional 2.5" hard drive.

TR-LCD1500-ITX-C2D/C2Q comes with Dual Gigabits LAN, 4 x USB 2.0, 2 x COM and 1 x LPT ports.  Input power options include 1 x ATX -12V 4-pin connector for CPU power.  It is compatible with AT and ATX mode.

Operating temperature is 0 ~ 50C (32 ~ 122F) and at 60C (140F) for 2 hours at full software load, with 2 redundant slowed down ball bearing fans.

MTBF of the TR-LCD1500-ITX-C2D/C2Q is in excess of 100,000 hours.  Warranty is 3 years.  Please contact our Transduction sales team for more information.

Options:

Touch screen option - resistive or capacitiveTouch screen option - resistive or capacitive

TR-MS - Angled Desktop Stand for 15" and 19" panel mount monitors and computers.

Similar products:

TR-LCD1500-ITX-i5/i7 with 15" LCD Touch Screen and Intel Core i5 or i7 Processor

TR-LCD1900-ITX-i5/i7 with 19" LCD Touch Screen and Intel Core i5 or i7 Processor

TR-LCD1900-ITX-C2D/C2Q with 19" LCD Touch Screen and Intel Core 2 Duo or Core 2 Quad Processor

TR-LCD1500-ITX with 15" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-LCD1900-ITX with 19" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-7190 AC or DC Input Panel/Rack Mount Computer w/ 19" LCD Display and Intel Core i-Series Processor

TR-7001 AC or DC Input Panel/Rack Mount Computer w/ 15" LCD Display and Intel Core i-Series Processor

TR-6190 AC or DC input Panel/Rack Mount Computer with 19" LCD Touch Screen and Intel Core 2 Duo or Core 2 Quad Processor

TR-5915 AC or DC input Fanless Computer with 15" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-5195F AC or DC input Fanless Computer with 19" LCD Touch Screen and Intel ATOM 1.6GHz Processor

TR-5190 AC or DC input Panel/Rack Mount Computer with 19" LCD Touch Screen and Intel P4 3.0GHz Processor

TR-5001 AC or DC input Panel/Rack Mount Computer with 15" LCD Touch Screen and Intel P4 3.0GHz Processor
