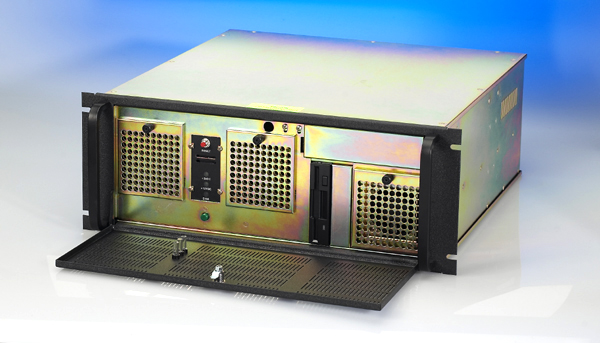

GLORIA-DR ATX Rack Mount Industrial Computer

 GLORIA-DR ATX Rack Mount Industrial Computer

Gloria-DR Specifications and Features

Rugged, reliable and practical 14-slot industrial computer for 19" racks with Air Chamber (C) optimized air flow and built-in temperature control for longer life of your system. The high quality chassis is precision designed and manufactured with CAD-CAM robotics in our own Metal Shop. We have total control of air flow, electrical and EMI protection.

RACK MOUNT CHASSIS

  • Front door with a slotted lock for easy access
  • All Gloria chassis can be supplied with a 14 slot passive or active backplane or low cost motherboard
  • High quality, solid steel chassis that is resistant to corrosion and vibration
  • Clear zinc steel finish or yellow dichromate (standard) with front panel that is coated with scratch resistant epoxy
  • Heavy duty front panel mounted handles
  • Excellent air flow with Adaptive Temperature controller on 2 NIDEC 43 CFM ball bearing fans mounted on Air Chamber (C) controller. One air fan is mounted in front of 3 hard drives to extend system reliability
  • Adaptive Temperature controller and Air Chamber provide for lower acoustical noise and less dust in the computer
  • Optional air filter that can be easily replaced
  • Behind front door: easily removable dust filter, ON/OFF switch, +5, +12, HD LED indicators and speaker
  • It has room for 1 front panel full size 5.25" drive, two 3.5" drives and up to 5 internal 3.5" drives
  • Comes with a variety of standard PS/2 type AC or DC power supplies and dual hot swap power supplies with high quality NIDEC fans
  • Precision designed and manufactured in our own robotics CAD-CAM shop
  • This chassis can easily be changed to suit your requirements
  • Excellent EMI protection to meet FCC class B, has C-UL and CE approved power supplies. Each chassis has C-UL electrical safety approval sticker
  • 2 years warranty
  • Always in stock

Similar products with special features:

Gloria chassis

Gloria D chassis

Download the Gloria-DR Mechanical Dimensional Drawing
