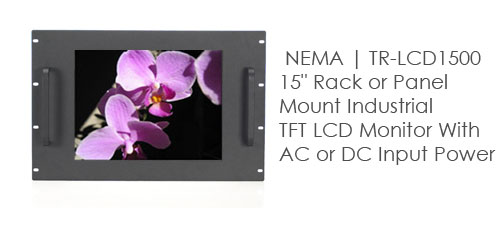

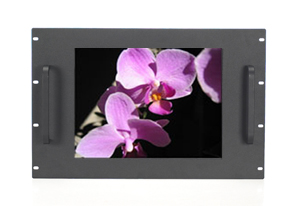

NEMA | TR-LCD1500 15" Rack or Panel Mount Industrial TFT LCD Monitor With AC or DC Input Power

 NEMA | TR-LCD1500 15 Rack or Panel Mount Industrial TFT LCD Monitor With AC or DC Input Power

Reliable AAA LG 15" TFT LCD monitor with 1024 x 768 resolution in an industrial rack mount or panel mount enclosure. NEMA 4 epoxy coated finish over steel. Optional stainless steel version. Optional resistive and capacitive touch.

TR-LCD1500-PM is a direct replacement of Allen Bradley and Rockwell Automation model 6186-M VersaView flat panel monitors.

Features:

  • Resolution 1024 x 768
  • Viewable area 15"
  • Resistive touch screen or safety glass
  • Brightness 250 cd/mē
  • Contrast ratio 300:1
  • Viewing angle (L/R/U/D) 70/70/60/65
  • Response time 25ms
  • Pixel pitch 0.297mm
  • Input power 100-240VAC or 12VDC, optional 24VDC & 48VDC, 125VDC & 250VDC

OSD (On-Screen Display) Controls: Allow you to quickly and easily adjust elements of your screen image with simple to use on-screen menus: English, French, Italian, German, Spanish.

Full Scan Capability: Allows you to use the entire screen area.

Plug and Play: The Microsoft solution with the Windows 95/98/Me/2000/XP/Vista operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

Options:

Touch screen option - resistive or capacitive

TR-LCD-24VDC and TR-LCD-48VDC - Fanless 24VDC and 48VDC input power option.

TR-MS - Angled Desktop Stand for 15" and 19" panel mount monitors and computers.

Power Saving Mode: Backlight can be turned off to extend useful life of lamps.

Ordering Information:

TR-LCD1500-RM Rack Mount Version
TR-LCD1500-PM Panel Mount Version

Download TR-LCD1500 Specifications

TR-LCD1500-PM Panel Cutout PDF Drawing

TR-LCD1500-PM Panel Cutout AUTOCAD 14.dwg Drawing

Download TR-LCD1500 User's Manual

Download USB Touch Screen Driver for Windows 7, 2K, XP and VISTA
